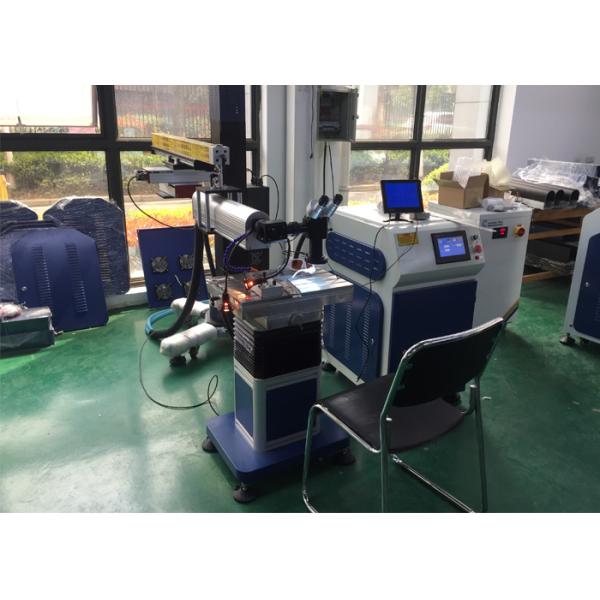

Crane Arm Laser Mould Welding Machine / Laser Welding Equipment For Large Molds

Product Categories

Nanjing Speedy Laser Technology Co., Ltd.

Contact Now

Name: Crane Arm Laser Mould Welding Machine Laser Welding Equipment For Large Molds
Brand: Speedy Laser
Price: 1 USD

Brand Name : Speedy Laser

Model Number : SL-WM 300W

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 sets / month

Delivery Time : 7-10 days

Packaging Details : Plywood export packing

name : Mould Repairing Laser Welding Machine

laser power : 300W / 400W

laser source : Nd:YAG

Observing System : CCD camera

Pulse Width : 0.1-20ms

Single Pulse Energy : 90J

Contact Now

Crane arm laser mould welding machine for welding large molds with universal jib

Speedy Laser Welding Machine Advantages:

1. Using advanced automatic light shielding system, eliminating the lightstimulating to eyes.

2. Small heat-affected zone, expertise and beautiful welding spot, withoutexcessive handling after welding.

3. Multiple observing system.

4. Soft laser beam for best molten pool.

5. User friendly digital message display for easy control.

Speedy Laser Welding Machine Technical parameters:

Machine Name	Laser Welding Machine
Model No.	SL-WY300 B
Laser Power	300W
3-axis stroke	X=250mm, Y=150mm,Z=250mm (X, Y manual, Z auto)
Work table capacity	≤150KG
Power Supply	220V/50Hz
Laser Type	Nd: YAG Pulse
Adjusting range of the light spot	0.1~0.3mm
Diameter of laser spot	0.2~3mm
Laser Wavelength	1064nm
Pulse Energy	90J
Pulse Width	0.3-20ms
Pulse Frequency	0.1-50Hz
Laser Output Focal Length	110mm
Laser Cooling	Water Chiller 1HP
Observing System	Microscope 10X
Shield gas	One line (argon)
Welding Rods Diameter	0.1mm～0.8mm
Machine Weight	370-420kg per different configurations
Peak Power Consumption	9KW+1.2KW
Optional Items/Features	CCD observation and LCD display
	3HP water chiller or 60Hz water chiller
	Rotary Jig
	Motorized X/Y worktable
	Motorized X/Y slide rail
	PLC programmer
