100W High Precision YAG spot jewelry laser lelder with microscope for Silver Gold Copper
Product Features:
1). Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a
variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient.
2). The British imported ceramic condenser cavity, corrosion resistance, high temperature, high
photoelectric conversion efficiency, the condenser chamber life (8--10 years), xenon lamp life of more
than 8 million times.
3). The world's most advanced automatic shading system, eliminating the time to protect the eyes.
4). With 24 hours of continuous work capacity, machine performance and stability, within 1,500 hours of
maintenance-free.
5). User-friendly design, ergonomic, long working hours without fatigue.
6). Speed, high efficiency, depth, small deformation, small heat-affected zone, high quality welding, spot
clean, efficient and environmentally friendly.
Application:
Widely used in aviation, aerospace, sporting goods, jewelry, golf club heads, medical equipment,
aluminum dentures, instruments, electronics, machining, automotive and other industries, in particular for
the fill hole silver platinum titanium stainless steel jewelry accessories point weld lines, precious stones
and claw feet by welding.
Technical Parameter: 200W Jewelry laser welding machine
| Item Name | Technical Parameter |
| Model | SL-WJ 100W |
| Laser power | 100W |
| Laser wavelength | 1064nm |
| Laser type | Nd:YAG |
| Laser Engery | 40J |
| Pulse Width | ≤ 20ms |
| Pulse Frequency | ≤ 50Hz |
| Beam diameter | 0.1-3.0mm |
| Observing System | Microscope |
| Power supply requirement | 220V 50-60Hz |
| Gross weight | 100 KG |
| Package | Standard export wooden case |

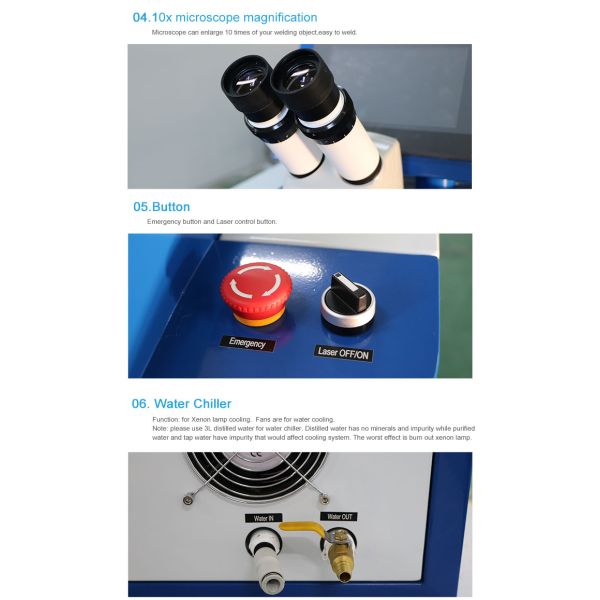

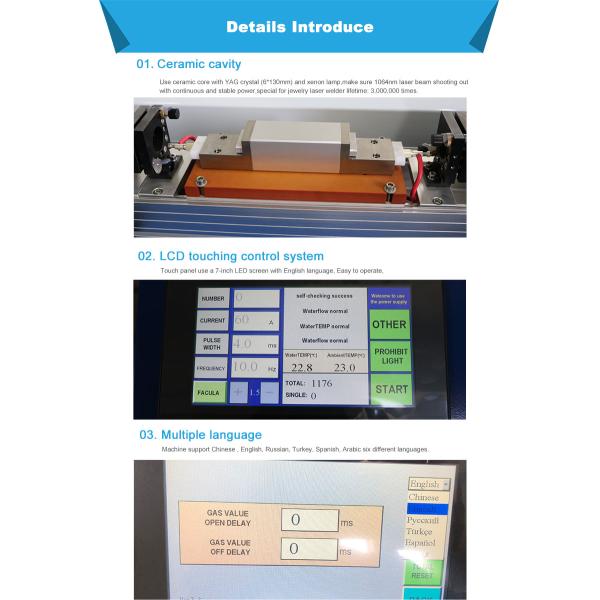

Machine photo:
Welcome inquiry for machine details specifications.
