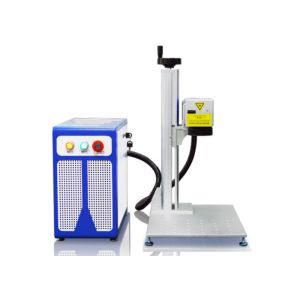

20w 30w fiber laser metal marking machine metal laser engraving machine
Machine Feature:
1) Portable Metal Laser Engraving Machine is highly integrated, has the superior laser beam and uniform
power density. Output laser power is stable. This design highly increases the machine’s anti-reflection
ability, be able to mark on aluminum, copper, gold, and silver without the shadow and virtual open
phenomenon.
2) Portable Metal Laser Engraving Machine adopts advanced digital high-speed scanning galvanometer,
small volume, quick speed, good stability, performance reached the international advanced level.
3) Modular design, separate laser generator, and lifter, more flexible, can marker on the bigger area and
complicated surface.
4) Portable Metal Laser Engraving Machine adopt the embedded operating system, which the
performance is leading domestic peers, good touch interface, and powerful control system, can meet the
demand of most industry application process in the market.
5) Portable Metal Laser Engraving Machine adopt special flying marking control system, with good
performance and easy operation.
Application:
For Industries: Portable Metal Laser Engraving Machine is widely used in food and beverage,
pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics,
electronics and other industries, low consumption, non-toxic, no pollution.
For Materials: This series Portable Metal Laser Engraving Machine apply to food and beverage,
pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile
telephone shells, kitchen & bathroom hardware, shells of watches, medical apparatus and instruments,
tools’ fittings,auto spare parts,electronics and other industries.
Technical parameters:
| Item Name | Parameter |
| Model | SL-FM 20W |
| Laser Power | 20W |
| Laser wavelength | 1064nm |
| Laser type | Raycus IPG fiber laser source |
| Beam diameter | 7mm±1 |
| Repeat frequency | 20KHz-60KHz |
| Pulse width | 131ns |
| Marking depth | 0.01-0.5mm |
| Marking area | 110×110mm |
| Rated power consumption | 800W |
| Operating voltage | 110V- 240V/50-60 Hz/15A |
| Cooling | Air Cooling |
| Packing size | 91*45*86cm (L*W*H) |
| Gross weight | 70 KG |
| Package | Standard export wooden cas |

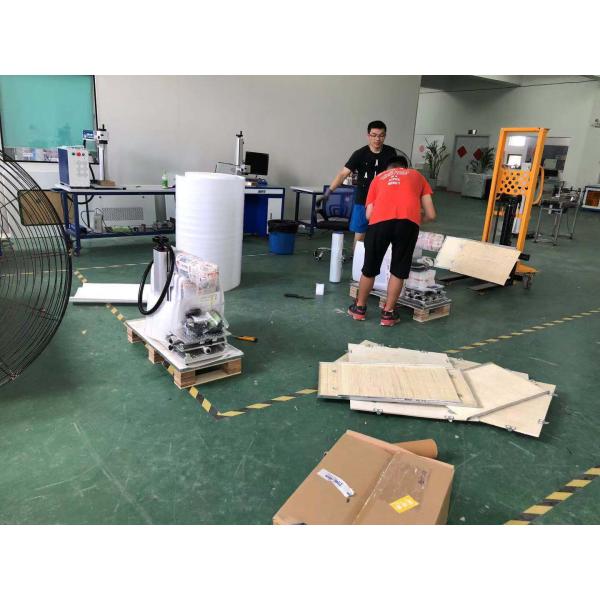

Welcome customer visit:
